• Country
• United States of America (USA)

• Manufacturer / Brand
• Radio Shack (Tandy, Realistic, Micronta); USA

• Year
• 1993 ?

• Category
• Amateur-Receiver (amateur bands, may include broadcast bands)

• Radiomuseum.org ID
• 359969

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superhet, double/triple conversion; ZF/IF 10700/455 kHz

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Details
• Scanner - multiband or special

• Power type and voltage
• Batteries / addl. power jack / AA: 6 x 1.5 / 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 1.37 inch = 3.5 cm

• Power out
• 0.2 W (max.)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Pro-39 Cat. No. 20-303 - Radio Shack Tandy, Realistic,

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 2.75 x 5.75 x 1.62 inch / 70 x 146 x 41 mm

• Notes

• Frequency coverage: VHF 30-54 MHz, 108-136.975 MHz, 137-174MHz

                                     UHF 380-512MHz, 806-823.9375 MHZ, 851-868.9375 MHz, 896-960                                       MHz

• Net weight (2.2 lb = 1 kg)
• 0.55 lb (0 lb 8.8 oz) / 0.250 kg

• Price in first year of sale
• 299.95 USD

• Mentioned in

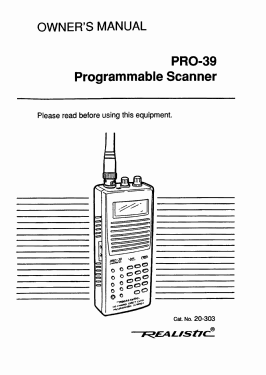

• - - Manufacturers Literature (Owners Manual)

• Literature/Schematics (1)

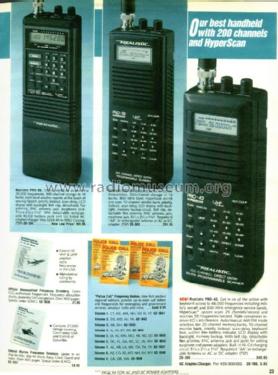

• Radio Shack Catalog (1993, page 23)

• Author
• Model page created by Ed Riley. See "Data change" for further contributors.
