Pro-71 Cat. No. 20-311

Radio Shack (Tandy, Realistic, Micronta); USA

Data
Forum
Pictures
Collections

  • Year
  • 2000
  • Category
  • Amateur-Receiver (amateur bands, may include broadcast bands)
  • Radiomuseum.org ID
  • 360079

Click on the schematic thumbnail to request the schematic as a free document.

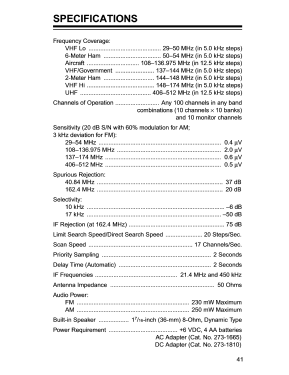

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superhet, double/triple conversion; ZF/IF 21400/450 kHz
  • Wave bands
  • VHF incl. FM and/or UHF (see notes for details)
  • Details
  • Scanner - multiband or special
  • Power type and voltage
  • Batteries / addl. power jack / AA: 4 x 1.5 / 6 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 1.43 inch = 3.6 cm
  • Power out
  • 0.25 W (max.)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Pro-71 Cat. No. 20-311 - Radio Shack Tandy, Realistic,
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 2.56 x 5.75 x 1.68 inch / 65 x 146 x 43 mm
  • Notes

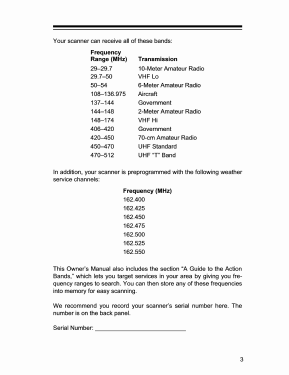

  • Frequency coverage: VHF 29-54 MHz

                                               108-136.975 MHz

                                               137 MHz - 174 MHz

                                       UHF 406-512MHz



  • Net weight (2.2 lb = 1 kg)
  • 0 lb 7.9 oz (0.494 lb) / 0.224 kg
  • Price in first year of sale
  • 129.99 USD
  • Mentioned in
  • - - Manufacturers Literature (Owner's Manual)
  • Author
  • Model page created by Ed Riley. See "Data change" for further contributors.
