• Country
• United States of America (USA)

• Manufacturer / Brand
• Radio Shack (Tandy, Realistic, Micronta); USA

• Year
• 1999

• Category
• Amateur-Receiver (amateur bands, may include broadcast bands)

• Radiomuseum.org ID
• 360092

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superhet, double/triple conversion; ZF/IF 10850/450 kHz

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Details
• Scanner - multiband or special

• Power type and voltage
• Batteries / addl. power jack / AA: 4 x 1.5 / 6 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 1.43 inch = 3.6 cm

• Power out
• 0.33 W (max.)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Pro-74 Cat. No. 20-513 - Radio Shack Tandy, Realistic,

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 2.62 x 6.5 x 1.68 inch / 67 x 165 x 43 mm

• Notes

• Frequency coverage: VHF 29 - 54 MHz

                                             108 - 136.975 MHz

                                             137 MHz - 174 MHz

                                    UHF 406 - 512MHz

                                             806 - 823.9375 MHz

                                             851 - 868.9375 MHz

                                             896.1125 - 956 MHz



• Net weight (2.2 lb = 1 kg)
• 0 lb 8.1 oz (0.506 lb) / 0.230 kg

• Price in first year of sale
• 199.99 USD

• Mentioned in

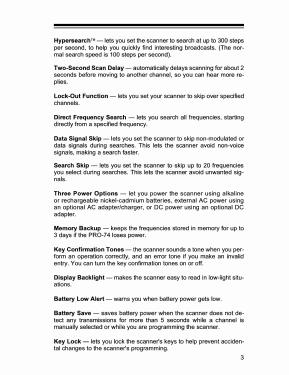

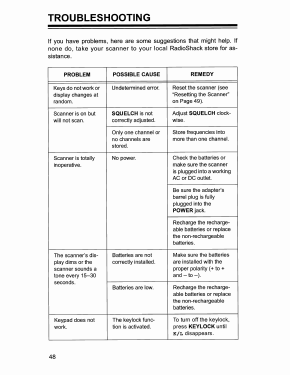

• - - Manufacturers Literature (Owner's Manual)

• Literature/Schematics (1)

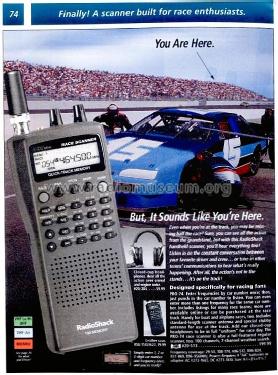

• Radio Shack Catalog (1999, page 74)

• Author
• Model page created by Ed Riley. See "Data change" for further contributors.
