Realistic Chronomatic 209 Cat.No.: 12-1514
Radio Shack (Tandy, Realistic, Micronta); USA
- Country
- United States of America (USA)
- Manufacturer / Brand
- Radio Shack (Tandy, Realistic, Micronta); USA
- Year
- 1985 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 241173

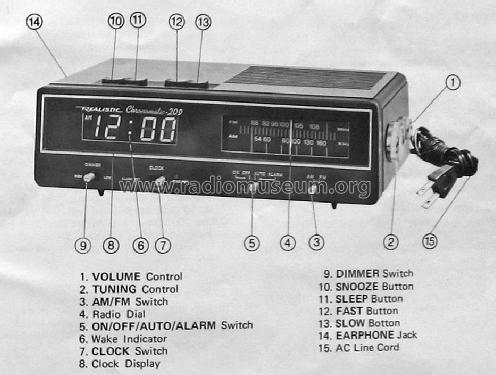

Picture from Owners Manual
Picture fron Owners Manual
- Number of Transistors
- 11
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 455/10700 kHz
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 120 / 220 - 240 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3.25 inch = 8.3 cm
- Power out
- 0.8 W (max.)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Realistic Chronomatic 209 Cat.No.: 12-1514 - Radio Shack Tandy, Realistic,
- Shape
- Tablemodel with Clock ((Alarm-) Clock Radio).
- Dimensions (WHD)
- 10.5 x 3.25 x 5.5 inch / 267 x 83 x 140 mm
- Notes
-
Radio Shack FM/AM Electronic Digital Clock Radio Model Realistic Chronomatic 209 Cat.No: 12-1514.
Tuning Range AM 520 - 1620 kHz, FM 88 - 108 MHz.
Sleep, Snooze Function, Dimmer.
Power Consumption 10 Watts.
1 x IC, 11 Transistors, 14 Diodes.
- Net weight (2.2 lb = 1 kg)
- 2 lb (2 lb 0 oz) / 0.908 kg
- Author
- Model page created by Franz Scharner. See "Data change" for further contributors.
