Realistic CTR-68 14-808
Radio Shack (Tandy, Realistic, Micronta); USA
- Country
- United States of America (USA)
- Manufacturer / Brand
- Radio Shack (Tandy, Realistic, Micronta); USA
- Year
- 1985–1991
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 227397
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Cassette-Recorder or -Player
- Power type and voltage
- Batteries / addl. power jack / 4 x 1.5 / 6 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Realistic CTR-68 14-808 - Radio Shack Tandy, Realistic,
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 9.6875 x 6.75 x 2.125 inch / 246 x 171 x 54 mm
- Notes
-
Realistic CTR-68, switchable auto level recorder.
- Built-in mike
- Aux input for external audio source
- 5-segment LED recording meter
- Price in first year of sale
- 59.95 $
- Mentioned in

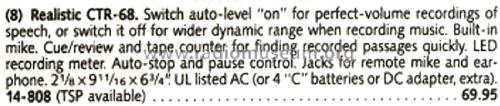

- Radio Shack Catalog (1988, No. 419, page 37; 1986, No. 393, page 39; 1987, No. 406, page 40.)
- Literature/Schematics (1)
- Radio Shack Catalog (1990, No. 446, page 48.)
- Literature/Schematics (2)
- Radio Shack Catalog (1991, No. 459, page 40.)
- Author
- Model page created by Noemi Erb. See "Data change" for further contributors.
