• Country
• United States of America (USA)

• Manufacturer / Brand
• Radio Shack (Tandy, Realistic, Micronta); USA

• Year
• 1989–1993

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 261398

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line / Batteries (any type) / 120 or 4 x 1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3.5 inch = 8.9 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

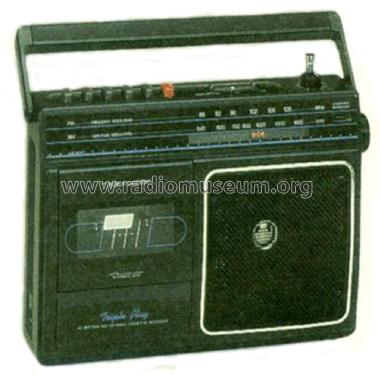

• Model: Realistic CTR-83 14-758 - Radio Shack Tandy, Realistic,

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 11.1875 x 7.3125 x 3 inch / 284 x 186 x 76 mm

• Price in first year of sale
• 39.95 $

• Literature/Schematics (2)

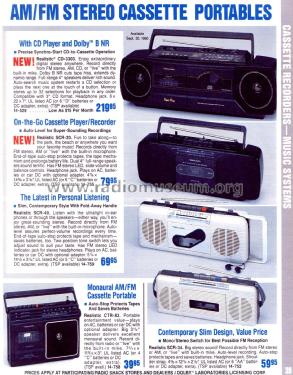

• Radio Shack Catalog (1990, No. 446, page 45.)

• Literature/Schematics (3)

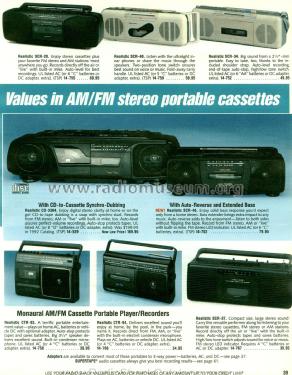

• Radio Shack Catalog (1991, No.459, page 39.)

• Literature/Schematics (4)
• Radio Shack Catalog (1992, No. 472, page 37, 1993, page 39.)

• Author
• Model page created by Noemi Erb. See "Data change" for further contributors.
