• Country
• United States of America (USA)

• Manufacturer / Brand
• Radio Shack (Tandy, Realistic, Micronta); USA

• Year
• 1987–1989

• Category
• Citizen Band Equipment

• Radiomuseum.org ID
• 227581

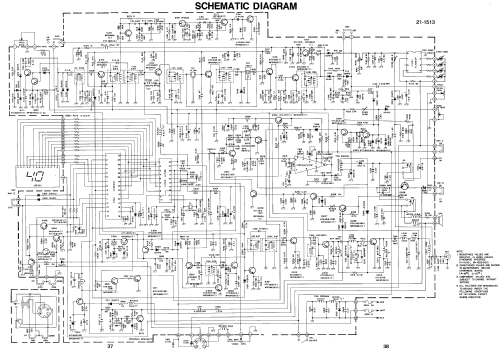

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Transceiver

• Wave bands
• Short Wave (SW only)

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Metal case

• from Radiomuseum.org
• Model: Realistic TRC-423 21-1513 - Radio Shack Tandy, Realistic,

• Shape
• Miscellaneous shapes - described under notes.

• Dimensions (WHD)
• 7.5 x 1.875 x 5.875 inch / 191 x 48 x 149 mm

• Notes

• Realistic TRC-423 21-1513, CB transceiver for car under-dash mounting; channel 9 priority switch, channel-scan controls on mike, noise blanker. Jacks for adding PA and remote speakers.

• Price in first year of sale
• 129.95 USD

• Mentioned in
• Radio Shack Catalog (1988, No. 419, page 64.)

• Author
• Model page created by Noemi Erb. See "Data change" for further contributors.
