• Country
• Germany

• Manufacturer / Brand
• Radiosonanz (GmbH bzw. AG), Berlin (W15)-Charlottenburg

• Year
• 1923/1924

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 16334

• Number of Tubes
• 3

• Valves / Tubes

• Main principle
• TRF with regeneration; 2 AF stage(s)

• Tuned circuits
• 1 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Details
• Record Player (perh.Changer)

• Power type and voltage
• Storage and/or dry batteries

• Loudspeaker
• Horn

• Material
• Wooden case

• from Radiomuseum.org

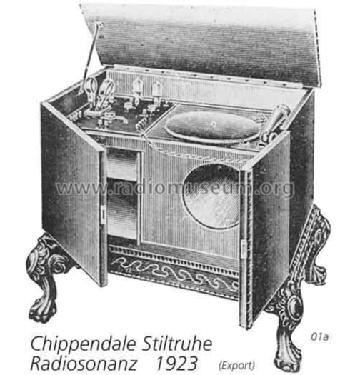

• Model: Chippendale-Truhe - Radiosonanz GmbH bzw. AG,

• Shape
• Console with any shape - in general

• Notes
• Truhe (Export): Chippendale Phonograph Co., Berlin

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Circuit diagram reference
• Info Dr. H. Börner without schematic

• Picture reference
• Das Modell ist im «Radiokatalog» (Erb) abgebildet.
