Arie

• Country
• Czechoslovakia

• Manufacturer / Brand
• Radiotechna, spol. s r. o., Praha-Prelouc

• Year
• 1937/1938

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 23298

• • alternative name: Kresl & spol, CS
  • Brand: Telefunken Praha

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes

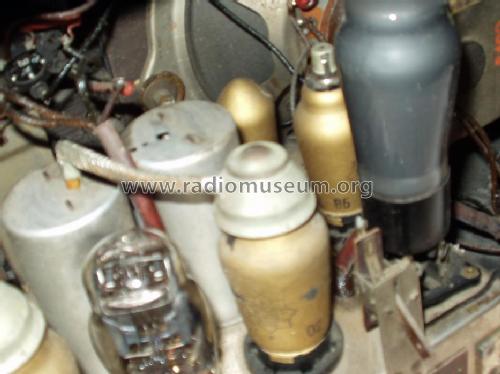

• AH1 AC2 AF3 AB2 AM2 AF7 AD1 AZ1

• Main principle
• Superheterodyne (common); ZF/IF 484 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

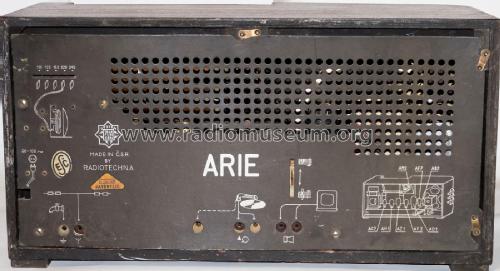

• Model: Arie - Radiotechna, spol. s r. o.,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 590 x 310 x 250 mm / 23.2 x 12.2 x 9.8 inch

• Net weight (2.2 lb = 1 kg)
• 13.5 kg / 29 lb 11.8 oz (29.736 lb)

• Price in first year of sale
• 2,700.00 Kc

• External source of data
• Erb

• Source of data
• Ceskoslovenske prijimace 1933-1945, Baudys 1947
