• Country
• Czechoslovakia

• Manufacturer / Brand
• Radiotechna, spol. s r. o., Praha-Prelouc

• Year
• 1940/1941

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 23308

• • alternative name: Kresl & spol, CS
  • Brand: Telefunken Praha

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECH11 EBF11 EF11 EL12 EM11 AZ12

• Main principle
• Superheterodyne (common); ZF/IF 490 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and 2 x Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 23 cm = 9.1 inch

• Material
• Wooden case

• from Radiomuseum.org

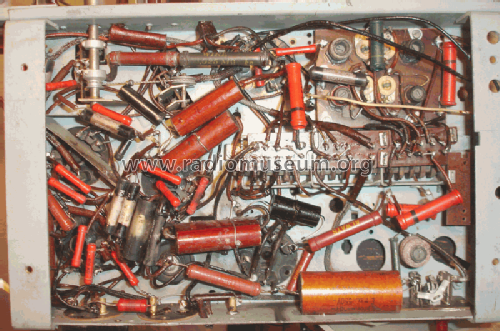

• Model: Atlanta - Radiotechna, spol. s r. o.,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 640 x 420 x 320 mm / 25.2 x 16.5 x 12.6 inch

• Net weight (2.2 lb = 1 kg)
• 21.4 kg / 47 lb 2.2 oz (47.137 lb)

• Price in first year of sale
• 3,800.00

• External source of data
• Erb

• Source of data
• Ceskoslovenske prijimace 1933-1945, Baudys 1947
