- Country
- Czechoslovakia
- Manufacturer / Brand
- Radiotechna, spol. s r. o., Praha-Prelouc
- Year
- 1936/1937
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 23291
-
- alternative name: Kresl & spol, CS
- Brand: Telefunken Praha

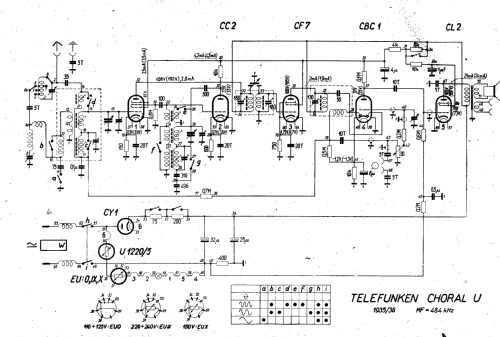

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 484 kHz
- Tuned circuits
- 5 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- AC/DC-set / 110-240 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org

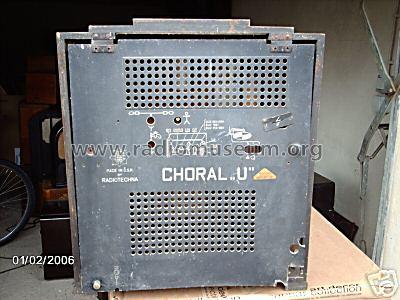

- Model: Choral U - Radiotechna, spol. s r. o.,
- Shape
- Tablemodel, high profile (upright - NOT Cathedral nor decorative).
- Dimensions (WHD)
- 453 x 505 x 270 mm / 17.8 x 19.9 x 10.6 inch
- Notes
- Im Plan sind die Sockelbilder von EUIX und EUX vertauscht.
110-125 V: EU0
150 V: EUX
220-240 V: EUIX
- Price in first year of sale
- 2,290.00 Kc
- External source of data
- Erb
- Source of data
- Ceskoslovenske prijimace 1933-1945, Baudys 1947
