• Country
• Czechoslovakia

• Manufacturer / Brand
• Radiotechna, spol. s r. o., Praha-Prelouc

• Year
• 1936/1937

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 23294

• • alternative name: Kresl & spol, CS
  • Brand: Telefunken Praha

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• AH1 AC2 AF3 AB2 AF7 AD1 AZ1

• Main principle
• Superheterodyne (common); ZF/IF 484 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC)

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

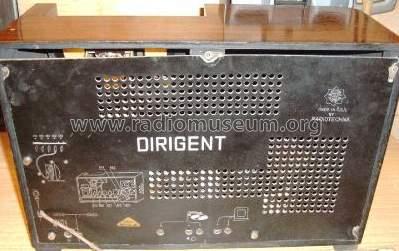

• Model: Dirigent - Radiotechna, spol. s r. o.,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 607 x 400 x 240 mm / 23.9 x 15.7 x 9.4 inch

• Notes
• Zeiger-Abstimmhilfe

• Price in first year of sale
• 2,750.00 Kc

• External source of data
• Erb

• Source of data
• Ceskoslovenske prijimace 1933-1945, Baudys 1947
