• Country
• Czechoslovakia

• Manufacturer / Brand
• Radiotechna, spol. s r. o., Praha-Prelouc

• Year
• 1935/1936

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 23285

• • alternative name: Kresl & spol, CS
  • Brand: Telefunken Praha

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• AF3 AF7 AC2 AL1 AZ1

• Main principle
• TRF with regeneration; ZF/IF 1 kHz; 2 AF stage(s)

• Tuned circuits
• 2 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC)

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

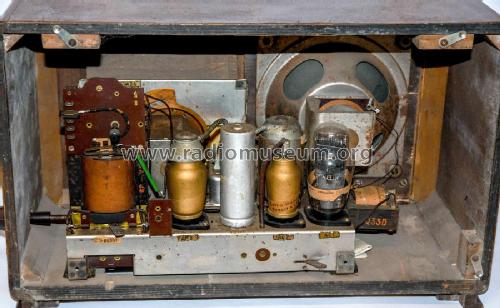

• Model: Gala Koncert - Radiotechna, spol. s r. o.,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 482 x 298 x 225 mm / 19 x 11.7 x 8.9 inch

• Price in first year of sale
• 1,750.00 Kc

• External source of data
• Erb

• Source of data
• Ceskoslovenske prijimace 1933-1945, Baudys 1947
