• Country
• Czechoslovakia

• Manufacturer / Brand
• Radiotechna, spol. s r. o., Praha-Prelouc

• Year
• 1935/1936

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 23286

• • alternative name: Kresl & spol, CS
  • Brand: Telefunken Praha

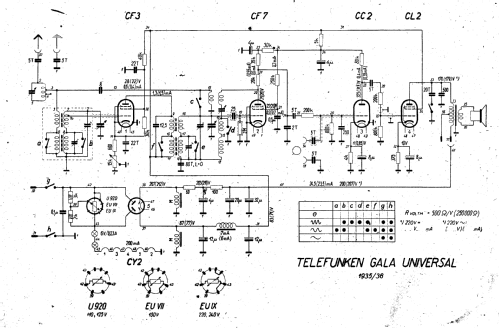

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• CF3 CF7 CC2 CL2 CY2

• Main principle
• TRF with regeneration; ZF/IF 1 kHz; 2 AF stage(s)

• Tuned circuits
• 2 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• AC/DC-set / 110-240 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

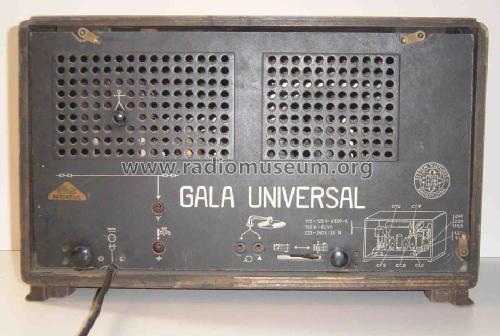

• Model: Gala Universal - Radiotechna, spol. s r. o.,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 480 x 300 x 225 mm / 18.9 x 11.8 x 8.9 inch

• External source of data
• Erb

• Source of data
• Ceskoslovenske prijimace 1933-1945, Baudys 1947
