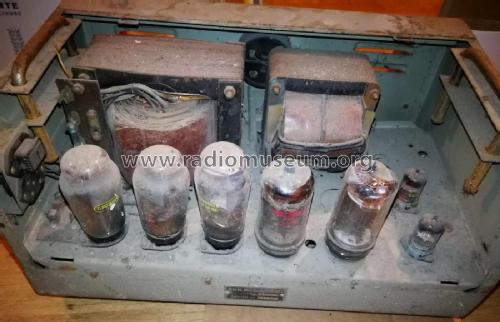

Rável Power Amplifier VR 102
RÁVEL - Posta Rádióvételtechnikai és Elektroakusztikai Üzem; Budapest
- Country
- Hungary
- Manufacturer / Brand
- RÁVEL - Posta Rádióvételtechnikai és Elektroakusztikai Üzem; Budapest
- Year
- 1958 ?
- Category
- Audio Amplifier or -mixer
- Radiomuseum.org ID
- 155801
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 110; 130; 220; 240 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Metal case
- from Radiomuseum.org
- Model: Rável Power Amplifier VR 102 - RÁVEL - Posta
- Dimensions (WHD)
- 450 x 350 x 280 mm / 17.7 x 13.8 x 11 inch
- Notes
- Out: 50 other 100 V.
- Net weight (2.2 lb = 1 kg)
- 25 kg / 55 lb 1.1 oz (55.066 lb)
- Literature/Schematics (1)
- Kádár Géza, Rádióvevökészülékek kapcsolása II. 1956-1959.
- Author
- Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
