• Country
• Czechoslovakia

• Manufacturer / Brand
• Radiotechna, spol. s r. o., Praha-Prelouc

• Year
• 1933/1934

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 94206

• • alternative name: Kresl & spol, CS
  • Brand: Telefunken Praha

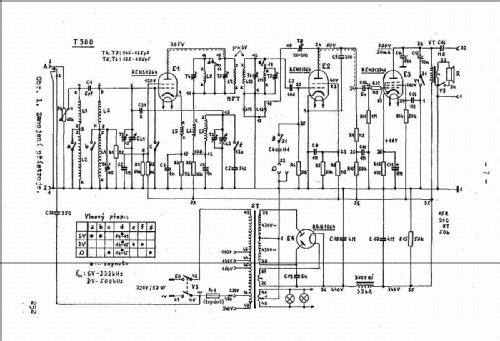

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes

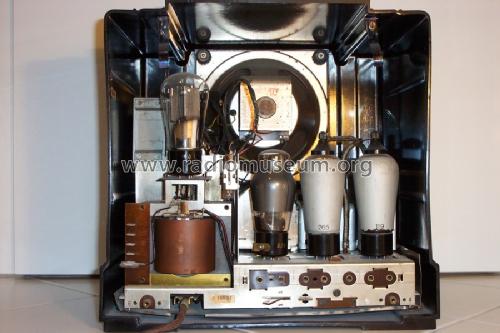

• RENS1264 RENS1264 RENS1374d RGN1064

• Main principle
• Superheterodyne (common); ZF/IF 232 kHz; Reaction

• Tuned circuits
• 4 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 13.5 cm = 5.3 inch

• Material
• Bakelite case

• from Radiomuseum.org
• Model: Telefunken 300 - Radiotechna, spol. s r. o.,

• Shape
• Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.

• Dimensions (WHD)
• 335 x 330 x 235 mm / 13.2 x 13 x 9.3 inch

• Net weight (2.2 lb = 1 kg)
• 12 kg / 26 lb 6.9 oz (26.432 lb)

• Price in first year of sale
• 2,395.00 kc

• Source of data
• - - Data from my own collection

• Author
• Model page created by Martin Hegerl. See "Data change" for further contributors.

• Other Models

• Here you find 69 models, 61 with images and 53 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
