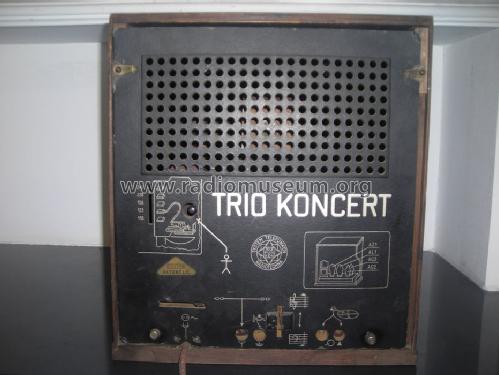

Trio Koncert System Telefunken

• Country
• Czechoslovakia

• Manufacturer / Brand
• Radiotechna, spol. s r. o., Praha-Prelouc

• Year
• 1935/1936

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 23284

• • alternative name: Kresl & spol, CS
  • Brand: Telefunken Praha

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• AC2 AC2 AL1 AZ1

• Main principle
• TRF with regeneration; 2 AF stage(s)

• Tuned circuits
• 1 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 13.5 cm = 5.3 inch

• Material
• Wooden case

• from Radiomuseum.org
• Model: Trio Koncert System Telefunken - Radiotechna, spol. s r. o.,

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 337 x 376 x 200 mm / 13.3 x 14.8 x 7.9 inch

• Price in first year of sale
• 1,190.00 Kc

• External source of data
• Erb

• Source of data
• Ceskoslovenske prijimace 1933-1945, Baudys 1947

• Other Models

• Here you find 69 models, 62 with images and 53 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
