Abava RP-8332

Radiotehnika (RT) - after 1951 RRR Rigas Radio Rupnica; Riga

Data
Forum
Pictures
Collections

  • Year
  • 1987 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 97159
    • alternative name: A. Ss. Popow, Riga || Kandava Radio Works || Riga Popov Radiotechnika Works

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast, Long Wave, more than 2 x SW plus FM or UHF.
  • Power type and voltage
  • Line / Batteries (any type) / 220 / (6 × 1,5) Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Abava RP-8332 - Radiotehnika RT - after 1951
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 322 x 95 x 70 mm / 12.7 x 3.7 x 2.8 inch
  • Notes
  • Set produced in Riga Popov Radiotechnika Works subsidiary - Kandava Radio Works, Kandava, LV. Analog - radio set "Salena 215" see in RMorg.
  • Net weight (2.2 lb = 1 kg)
  • 1.2 kg / 2 lb 10.3 oz (2.643 lb)

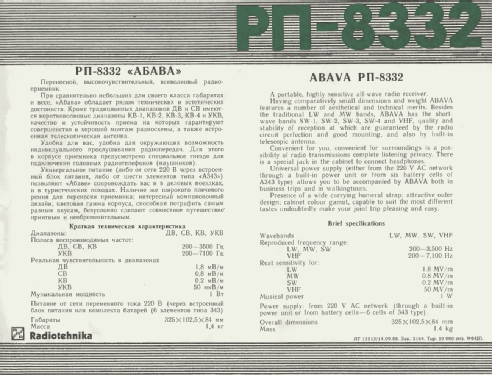

  • Literature/Schematics (1)
  • -- Schematic
  • Author
  • Model page created by Zenonas Langaitis. See "Data change" for further contributors.
