Astrad Solar 17 Transistors F6TR17-R103

Radiotehnika (RT) - after 1951 RRR Rigas Radio Rupnica; Riga

Data

Forum

Pictures

Collections

Country
Latvia (Latvia, Riga)

Manufacturer / Brand
Radiotehnika (RT) - after 1951 RRR Rigas Radio Rupnica; Riga

Year
1967

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
115384

- alternative name: A. Ss. Popow, Riga || Kandava Radio Works || Riga Popov Radiotechnika Works

Schematics

Astrad Solar 17 Transistors F6TR17-R103; Radiotehnika RT - (ID = 315560) Radio — Radiotehnika RT - Astrad Solar 17 Transistors F6TR17-R103 (1)

Astrad Solar 17 Transistors F6TR17-R103; Radiotehnika RT - (ID = 423214) Radio — Radiotehnika RT - Astrad Solar 17 Transistors F6TR17-R103 (1)

Astrad Solar 17 Transistors F6TR17-R103; Radiotehnika RT - (ID = 315561) Radio — Radiotehnika RT - Astrad Solar 17 Transistors F6TR17-R103 (1)

Astrad Solar 17 Transistors F6TR17-R103; Radiotehnika RT - (ID = 346097) Radio — Radiotehnika RT - Astrad Solar 17 Transistors F6TR17-R103 (1)

Astrad Solar 17 Transistors F6TR17-R103; Radiotehnika RT - (ID = 346098) Radio — Radiotehnika RT - Astrad Solar 17 Transistors F6TR17-R103 (1)

Astrad Solar 17 Transistors F6TR17-R103; Radiotehnika RT - (ID = 346099) Radio — Radiotehnika RT - Astrad Solar 17 Transistors F6TR17-R103 (1)

Astrad Solar 17 Transistors F6TR17-R103; Radiotehnika RT - (ID = 346100) Radio — Radiotehnika RT - Astrad Solar 17 Transistors F6TR17-R103 (1)

Astrad Solar 17 Transistors F6TR17-R103; Radiotehnika RT - (ID = 346103) Radio — Radiotehnika RT - Astrad Solar 17 Transistors F6TR17-R103 (1)

Astrad Solar 17 Transistors F6TR17-R103; Radiotehnika RT - (ID = 346104) Radio — Radiotehnika RT - Astrad Solar 17 Transistors F6TR17-R103 (1)

Astrad Solar 17 Transistors F6TR17-R103; Radiotehnika RT - (ID = 423211) Radio — Radiotehnika RT - Astrad Solar 17 Transistors F6TR17-R103 (1)

Astrad Solar 17 Transistors F6TR17-R103; Radiotehnika RT - (ID = 423212) Radio — Radiotehnika RT - Astrad Solar 17 Transistors F6TR17-R103 (1)

Astrad Solar 17 Transistors F6TR17-R103; Radiotehnika RT - (ID = 423213) Radio — Radiotehnika RT - Astrad Solar 17 Transistors F6TR17-R103 (1)

Astrad Solar 17 Transistors F6TR17-R103; Radiotehnika RT - (ID = 423215) Radio — Radiotehnika RT - Astrad Solar 17 Transistors F6TR17-R103 (1)

Astrad Solar 17 Transistors F6TR17-R103; Radiotehnika RT - (ID = 423216) Radio — Radiotehnika RT - Astrad Solar 17 Transistors F6TR17-R103 (1)

Astrad Solar 17 Transistors F6TR17-R103; Radiotehnika RT - (ID = 423217) Radio — Radiotehnika RT - Astrad Solar 17 Transistors F6TR17-R103 (1)

Astrad Solar 17 Transistors F6TR17-R103; Radiotehnika RT - (ID = 423218) Radio — Radiotehnika RT - Astrad Solar 17 Transistors F6TR17-R103 (1)

Astrad Solar 17 Transistors F6TR17-R103; Radiotehnika RT - (ID = 1169244) Radio — Radiotehnika RT - Astrad Solar 17 Transistors F6TR17-R103 (2)

Astrad Solar 17 Transistors F6TR17-R103; Radiotehnika RT - (ID = 1169245) Radio — Radiotehnika RT - Astrad Solar 17 Transistors F6TR17-R103 (2)

Astrad Solar 17 Transistors F6TR17-R103; Radiotehnika RT - (ID = 1169246) Radio — Radiotehnika RT - Astrad Solar 17 Transistors F6TR17-R103 (2)

Astrad Solar 17 Transistors F6TR17-R103; Radiotehnika RT - (ID = 1169247) Radio — Radiotehnika RT - Astrad Solar 17 Transistors F6TR17-R103 (2)

Astrad Solar 17 Transistors F6TR17-R103; Radiotehnika RT - (ID = 2053435) Radio — Radiotehnika RT - Astrad Solar 17 Transistors F6TR17-R103 (2)

Astrad Solar 17 Transistors F6TR17-R103; Radiotehnika RT - (ID = 2053436) Radio — Radiotehnika RT - Astrad Solar 17 Transistors F6TR17-R103 (2)

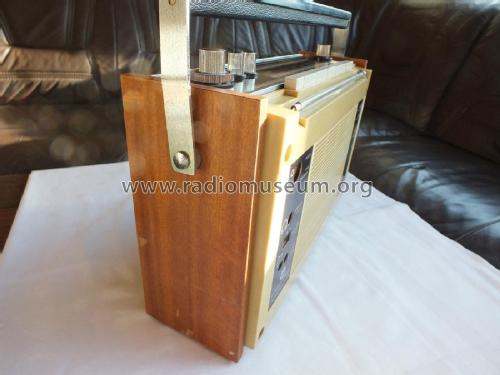

Astrad Solar 17 Transistors F6TR17-R103; Radiotehnika RT - (ID = 2053437) Radio — Radiotehnika RT - Astrad Solar 17 Transistors F6TR17-R103 (2)

Astrad Solar 17 Transistors F6TR17-R103; Radiotehnika RT - (ID = 2053439) Radio — Radiotehnika RT - Astrad Solar 17 Transistors F6TR17-R103 (2)

Astrad Solar 17 Transistors F6TR17-R103; Radiotehnika RT - (ID = 2053440) Radio — Radiotehnika RT - Astrad Solar 17 Transistors F6TR17-R103 (2)

Astrad Solar 17 Transistors F6TR17-R103; Radiotehnika RT - (ID = 2053441) Radio — Radiotehnika RT - Astrad Solar 17 Transistors F6TR17-R103 (2)

Astrad Solar 17 Transistors F6TR17-R103; Radiotehnika RT - (ID = 2765008) Radio — Radiotehnika RT - Astrad Solar 17 Transistors F6TR17-R103 (1)

Technical Specifications

Number of Transistors
17

Semiconductors

Main principle
Superheterodyne (common); ZF/IF 465/10700 kHz

Wave bands
Broadcast, Long Wave, more than 2 x SW plus FM or UHF.

Power type and voltage
Dry Batteries / 8 × 1,5 Volt

Loudspeaker
2 Loudspeakers

Power out
1 W (unknown quality)

Material
Wooden case

from Radiomuseum.org
Model: Astrad Solar 17 Transistors F6TR17-R103 - Radiotehnika RT - after 1951

Shape
Portable set > 8 inch (also usable without mains)

Dimensions (WHD)
380 x 280 x 120 mm / 15 x 11 x 4.7 inch

Notes
Radiotehnika Astrad Solar "17 Transistors" F6TR17-R103;
Export version of the Riga 103.

Two versions with same type known:
VHF: 88 - 100 Mhz
or VHF: 88 - 104 Mhz.

Sockets for tape recorder (DIN), pickup (DIN), earphone, 12V external battery, external loudspeaker, antenna, ground and VHF dipole.

Net weight (2.2 lb = 1 kg)
5.5 kg / 12 lb 1.8 oz (12.115 lb)

Source of data
-- Collector info (Sammler)

Author
Model page created by Howard Craven. See "Data change" for further contributors.

Other Models
Here you find 100 models, 98 with images and 63 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Radiotehnika (RT) - after 1951 RRR Rigas Radio Rupnica; Riga

Collections | Museums | Literature

Collections

The model Astrad Solar 17 Transistors is part of the collections of the following members.

Forum

Forum contributions about this model: Radiotehnika RT -: Astrad Solar 17 Transistors F6TR17-R103

Threads: 1 | Posts: 1

Ignoro los problemas de Copyright en que se pueda incurrir, así que esto es sólo una propuesta.

Siendo este radio una versión de exportación del Riga 103, el esquema de este último está disponible aquí

Miguel Lopez, 20.Oct.17

Weitere Posts (1) zu diesem Thema.
