- Country
- Latvia (Latvia, Riga)
- Manufacturer / Brand
- Radiotehnika (RT) - after 1951 RRR Rigas Radio Rupnica; Riga
- Year
- 1967
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 161344
-
- alternative name: A. Ss. Popow, Riga || Kandava Radio Works || Riga Popov Radiotechnika Works
Thanks for Valery Charcenko, Russia

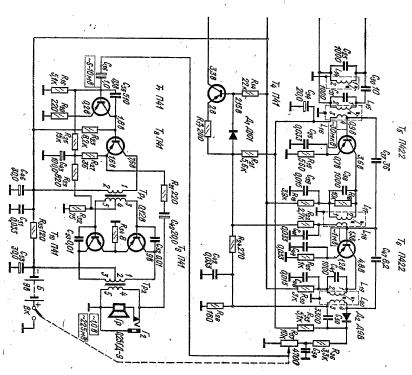

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 10
- Main principle
- Superheterodyne (common); ZF/IF 465 kHz
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Dry Batteries / 6 x 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 0.1 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Banga 2 - Radiotehnika RT - after 1951
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 190 x 110 x 62 mm / 7.5 x 4.3 x 2.4 inch
- Notes
-
Banga 2 ist ein kleiner Empfänger mit einem Anschluß für einen Kopfhörer.
- Net weight (2.2 lb = 1 kg)
- 0.8 kg / 1 lb 12.2 oz (1.762 lb)
- Source of data
- -- Collector info (Sammler)
- Author
- Model page created by Zenonas Langaitis. See "Data change" for further contributors.
