• Country
• Latvia (Latvia, Riga)

• Manufacturer / Brand
• Radiotehnika (RT) - after 1951 RRR Rigas Radio Rupnica; Riga

• Year
• 1960 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 76807

• • alternative name: A. Ss. Popow, Riga || Kandava Radio Works || Riga Popov Radiotechnika Works

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 6Н3П 6И1П 6К4П 6Х2П 6Е5С 6Н2П 6П14П

• Main principle
• Superheterodyne (common); ZF/IF 465 kHz

• Wave bands
• Broadcast, Long Wave, more than 2 x SW plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 127/220 Volt

• Loudspeaker
• 3 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

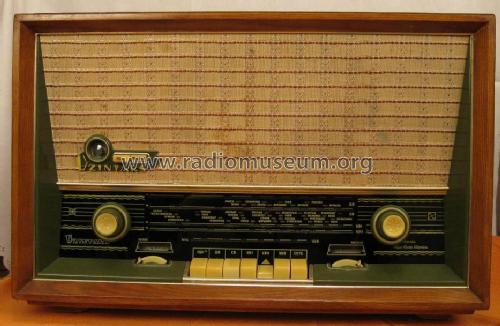

• Model: Dzintars - Radiotehnika RT - after 1951

• Dimensions (WHD)
• 560 x 363 x 278 mm / 22 x 14.3 x 10.9 inch

• Net weight (2.2 lb = 1 kg)
• 14 kg / 30 lb 13.4 oz (30.837 lb)

• Source of data
• -- Schematic

• Author
• Model page created by Nikolaj Baranov. See "Data change" for further contributors.
