- Country
- Latvia (Latvia, Riga)
- Manufacturer / Brand
- Radiotehnika (RT) - after 1951 RRR Rigas Radio Rupnica; Riga
- Year
- 1992
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 204694
-
- alternative name: A. Ss. Popow, Riga || Kandava Radio Works || Riga Popov Radiotechnika Works
- Number of Transistors
- Semiconductors present.
- Main principle
- Superheterodyne (common); ZF/IF 10700 kHz
- Wave bands
- FM Broadcast Band Only
- Power type and voltage
- Dry Batteries / 3 x 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 cm = 2.4 inch
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org

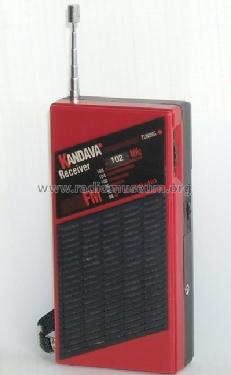

- Model: Kandava - Radiotehnika RT - after 1951
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 75 x 150 x 35 mm / 3 x 5.9 x 1.4 inch
- Notes
- Batteries: 3x 1,5 V size AA.
- Net weight (2.2 lb = 1 kg)
- 0.320 kg / 0 lb 11.3 oz (0.705 lb)
- Source of data
- - - Data from my own collection
- Author
- Model page created by Nikolaj Baranov. See "Data change" for further contributors.
