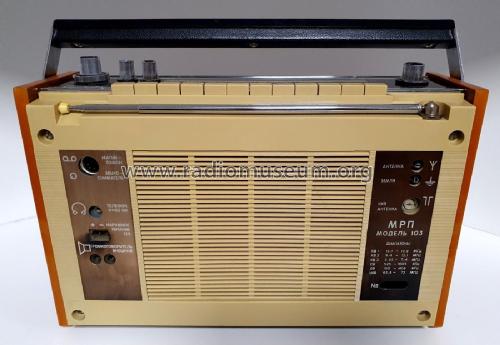

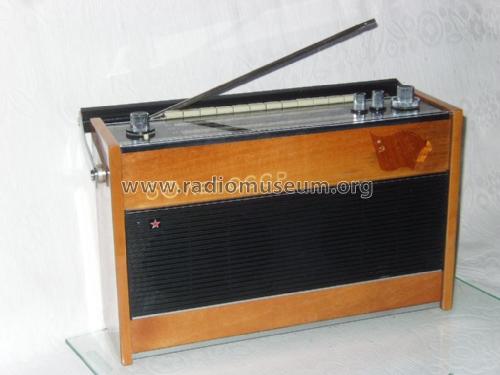

Riga MRP - Рига МРП model - модель 103
Radiotehnika (RT) - after 1951 RRR Rigas Radio Rupnica; Riga
- Country
- Latvia (Latvia, Riga)
- Manufacturer / Brand
- Radiotehnika (RT) - after 1951 RRR Rigas Radio Rupnica; Riga
- Year
- 1972/1972
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 298184
-
- alternative name: A. Ss. Popow, Riga || Kandava Radio Works || Riga Popov Radiotechnika Works
- Number of Transistors
- 17
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.
- Power type and voltage
- Batteries / addl. power jack / 8х1,5 / 12 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Power out
- 0.5 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Riga MRP - Рига МРП model - модель 103 - Radiotehnika RT - after 1951
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 380 x 240 x 115 mm / 15 x 9.4 x 4.5 inch
- Notes
-
Produced at 50th anniversary of USSR for General Council members.
- Net weight (2.2 lb = 1 kg)
- 5 kg / 11 lb 0.2 oz (11.013 lb)
- Author
- Model page created by Vladimir Manannikov. See "Data change" for further contributors.
