• Country
• Latvia (Latvia, Riga)

• Manufacturer / Brand
• Radiotehnika (RT) - after 1951 RRR Rigas Radio Rupnica; Riga

• Year
• 1964

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 75496

• • alternative name: A. Ss. Popow, Riga || Kandava Radio Works || Riga Popov Radiotechnika Works

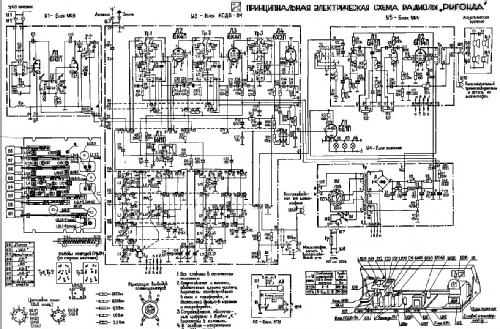

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• 6Н3П 6И1П 6К4П 6К4П 6Х2П 6Е1П 6Н2П 6П14П

• Main principle
• Superheterodyne (common); ZF/IF 465 kHz

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details

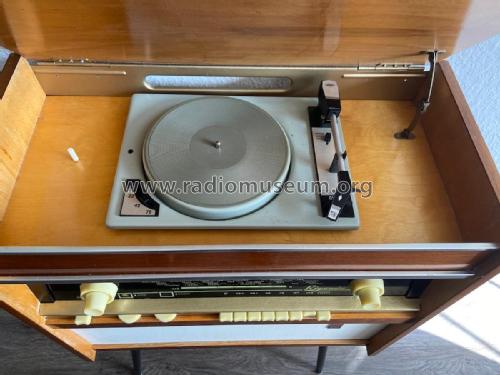

• Record Player (perh.Changer)

• Power type and voltage
• Alternating Current supply (AC) / 127/220 Volt

• Loudspeaker

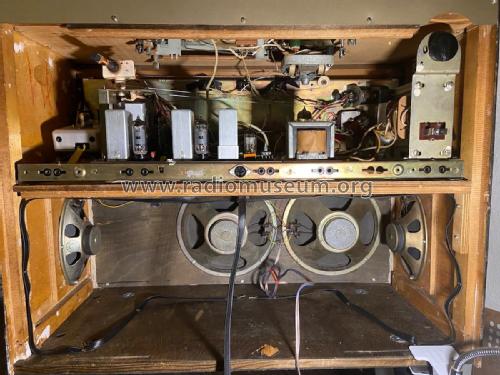

• 4 Loudspeakers

• Power out
• 2 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Rigonda-mono - Radiotehnika RT - after 1951

• Shape
• Console, Lowboy (legs < 50 %).

• Dimensions (WHD)
• 640 x 555 x 355 mm / 25.2 x 21.9 x 14 inch

• Notes
• 3 speed record player. 4 loudspeakers 2x1W, 2x4W.

• Net weight (2.2 lb = 1 kg)
• 24 kg / 52 lb 13.8 oz (52.863 lb)

• Price in first year of sale
• 141.00 RUR

• Author
• Model page created by Zenonas Langaitis. See "Data change" for further contributors.
