Selga 404

Radiotehnika (RT) - after 1951 RRR Rigas Radio Rupnica; Riga

Data

Forum

Pictures

Collections

Country
Latvia (Latvia, Riga)

Manufacturer / Brand
Radiotehnika (RT) - after 1951 RRR Rigas Radio Rupnica; Riga

Year
1974

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
79618

- alternative name: A. Ss. Popow, Riga || Kandava Radio Works || Riga Popov Radiotechnika Works

Schematics

Selga 404; Radiotehnika RT - (ID = 112071) Radio — Radiotehnika RT - Selga 404 (3)

Selga 404; Radiotehnika RT - (ID = 2620337) Radio — Radiotehnika RT - Selga 404 (1)

Selga 404; Radiotehnika RT - (ID = 2620340) Radio — Radiotehnika RT - Selga 404 (1)

Selga 404; Radiotehnika RT - (ID = 2620338) Radio — Radiotehnika RT - Selga 404 (1)

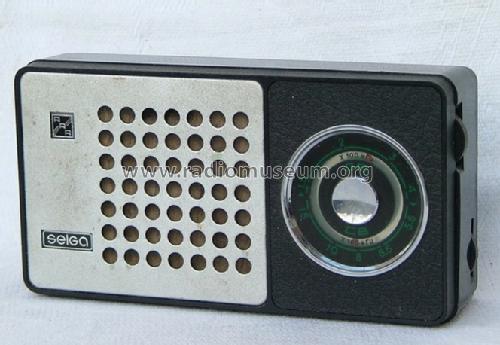

Selga 404; Radiotehnika RT - (ID = 112143) Radio — Radiotehnika RT - Selga 404 (1)
Kaunas Lithuania

Selga 404; Radiotehnika RT - (ID = 112144) Radio — Radiotehnika RT - Selga 404 (1)
Kaunas Lithuania

Selga 404; Radiotehnika RT - (ID = 112145) Radio — Radiotehnika RT - Selga 404 (1)
Kaunas Lithuania

Selga 404; Radiotehnika RT - (ID = 112189) Radio — Radiotehnika RT - Selga 404 (1)

Selga 404; Radiotehnika RT - (ID = 213305) Radio — Radiotehnika RT - Selga 404 (1)

Selga 404; Radiotehnika RT - (ID = 254592) Radio — Radiotehnika RT - Selga 404 (1)

Selga 404; Radiotehnika RT - (ID = 708410) Radio — Radiotehnika RT - Selga 404 (1)

Selga 404; Radiotehnika RT - (ID = 852813) Radio — Radiotehnika RT - Selga 404 (1)

Selga 404; Radiotehnika RT - (ID = 1272365) Radio — Radiotehnika RT - Selga 404 (1)

Selga 404; Radiotehnika RT - (ID = 1394973) Radio — Radiotehnika RT - Selga 404 (1)

Selga 404; Radiotehnika RT - (ID = 1873072) Radio — Radiotehnika RT - Selga 404 (1)

Selga 404; Radiotehnika RT - (ID = 2573040) Radio — Radiotehnika RT - Selga 404 (1)
from my website

Selga 404; Radiotehnika RT - (ID = 3096233) Radio — Radiotehnika RT - Selga 404 (1)

Selga 404; Radiotehnika RT - (ID = 3096234) Radio — Radiotehnika RT - Selga 404 (1)

Selga 404; Radiotehnika RT - (ID = 3096235) Radio — Radiotehnika RT - Selga 404 (1)

Selga 404; Radiotehnika RT - (ID = 3096236) Radio — Radiotehnika RT - Selga 404 (1)

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Transistors
8

Semiconductors
КТ315 КТ315 КТ315 КТ315 КТ315 КТ315 МП41 МП41

Main principle
Superheterodyne (common); ZF/IF 465 kHz

Wave bands
Broadcast (MW) and Long Wave.

Power type and voltage
Dry Batteries / 9 Volt

Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 cm = 3.1 inch

Power out
0.5 W (unknown quality)

Material
Plastics (no bakelite or catalin)

from Radiomuseum.org
Model: Selga 404 - Radiotehnika RT - after 1951

Dimensions (WHD)
192 x 102 x 51 mm / 7.6 x 4 x 2 inch

Notes
supply 9 v batery or type AA 6x1,5V.

Net weight (2.2 lb = 1 kg)
0.6 kg / 1 lb 5.1 oz (1.322 lb)

Source of data
-- Schematic

Author
Model page created by Nikolaj Baranov. See "Data change" for further contributors.
