Selga 405

• Country
• Latvia (Latvia, Riga)

• Manufacturer / Brand
• Radiotehnika (RT) - after 1951 RRR Rigas Radio Rupnica; Riga

• Year
• 1977

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 79619

• • alternative name: A. Ss. Popow, Riga || Kandava Radio Works || Riga Popov Radiotechnika Works

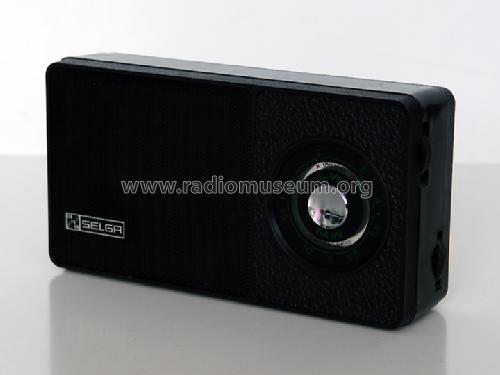

• Picture

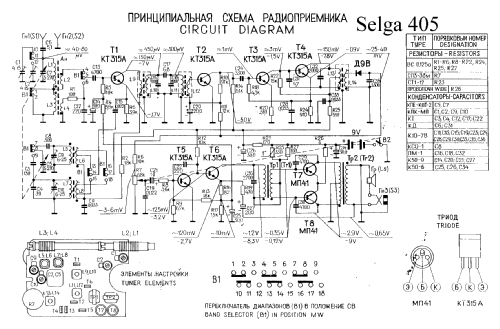

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 8

• Semiconductors
• КТ315 КТ315 КТ315 КТ315 КТ315 КТ315 МП41 МП41 Д9

• Main principle
• Superheterodyne (common); ZF/IF 465 kHz

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Dry Batteries / 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 0.5 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Selga 405 - Radiotehnika RT - after 1951

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 192 x 102 x 51 mm / 7.6 x 4 x 2 inch

• Notes
• supply battery 9 V or type AA 6x1,5V.

• Net weight (2.2 lb = 1 kg)
• 0.6 kg / 1 lb 5.1 oz (1.322 lb)

• Source of data
• -- Schematic

• Author
• Model page created by Nikolaj Baranov. See "Data change" for further contributors.
