• Country
• Latvia (Latvia, Riga)

• Manufacturer / Brand
• Radiotehnika (RT) - after 1951 RRR Rigas Radio Rupnica; Riga

• Year
• 1971–1976

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 78996

• • alternative name: A. Ss. Popow, Riga || Kandava Radio Works || Riga Popov Radiotechnika Works

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 17

• Valves / Tubes
• 6Н3П 6Ж1П 6К4П 6И1П 6Е1П 6К4П 6К4П 6Х2П 6Х2П 6Н2П 6Н2П 6Н2П 6П14П 6П14П 6П14П 6П14П 6Ф5П

• Number of Transistors
• 4

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 465 kHz

• Wave bands
• Broadcast, Long Wave, more than 2 x SW plus FM or UHF.

• Details
• Record Player (perh.Changer)

• Power type and voltage
• Alternating Current supply (AC) / 127; 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 6 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

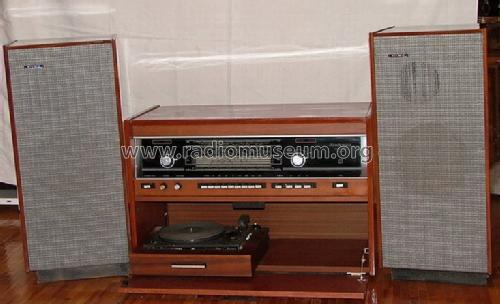

• Model: Simfonija 003 - Radiotehnika RT - after 1951

• Shape
• Console, Lowboy (legs < 50 %).

• Dimensions (WHD)
• 795 x 525 x 375 mm / 31.3 x 20.7 x 14.8 inch

• Notes

• Two external acoustic systems 350×790×285 mm with 3 loudspeakers (6 W + 3 W + 1 W) each.

  See also RT model Rigonda Bolshoi Stereo Multiplex.

  Note  on  back  cover  “Made in  USSR”,  because  Latvia   was  occupied by the USSR at that time.



• Net weight (2.2 lb = 1 kg)
• 37 kg / 81 lb 8 oz (81.498 lb)

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Nikolaj Baranov. See "Data change" for further contributors.
