- Country
- Latvia (Latvia, Riga)
- Manufacturer / Brand
- Radiotehnika (RT) - after 1951 RRR Rigas Radio Rupnica; Riga
- Year
- 1941
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 90840
-
- alternative name: A. Ss. Popow, Riga || Kandava Radio Works || Riga Popov Radiotechnika Works
Fully restored original variant.

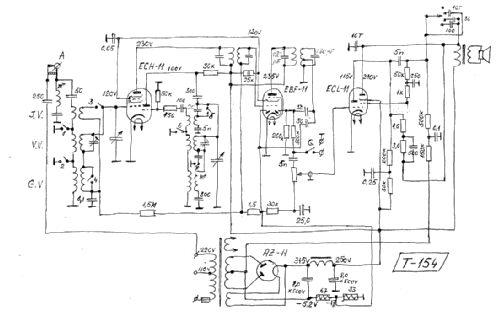

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); ZF/IF 468 kHz
- Tuned circuits
- 5 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 120/220 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 18 cm = 7.1 inch
- Power out
- 2 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: T154 - Radiotehnika RT - after 1951
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 550 x 295 x 250 mm / 21.7 x 11.6 x 9.8 inch
- Source of data
- -- Collector info (Sammler)
