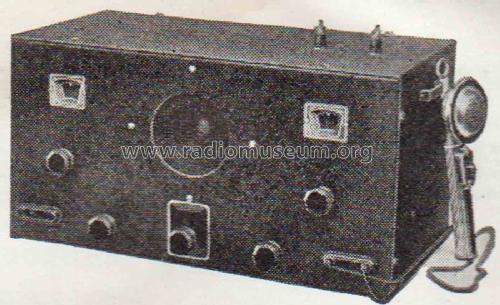

TR-6A6 De-Luxe
Radio Transceiver Laboratories (RTL); New York, NY
- Country
- United States of America (USA)
- Manufacturer / Brand
- Radio Transceiver Laboratories (RTL); New York, NY
- Year
- 1935
- Category
- Amateur TRX: Transmitter/Receiver (and Transceiver)
- Radiomuseum.org ID
- 286358
QST November 1935 page 96
QST November 1935 page 96
- Number of Tubes
- 7
- Main principle
- Transceiver
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Powered by external power supply or a main unit.
- Loudspeaker
- Permanent or electro-dynamic (moving coil), system not known yet.
- Material
- Metal case
- from Radiomuseum.org
- Model: TR-6A6 De-Luxe - Radio Transceiver Laboratories
- Shape
- Tablemodel, with any shape - general.
- Notes
-
The Radio Transceiver Laboratories TR-6A6 De-Luxe is a transceiver, operating on the 5 and 10 meter bands on phone or CW. Output is 10 watts. It uses plug-in coils for bands. External power supply delivering 300 volts at 200 ma, 6.3 volts at 3.4 amps and 2.5 volts at 10.75 amps is needed.
- Price in first year of sale
- 39.75 USD
- Mentioned in
- QST (November 1935 page 96)
- Author
- Model page created by Wayne Childress. See "Data change" for further contributors.
