• Country
• Spain

• Manufacturer / Brand
• Radio Watt (Valgifson); Barcelona

• Year
• 1955 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 273482

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• UCH81 UF89 UBC41 UL84 UY85

• Main principle
• Superheterodyne (common); 2 AF stage(s)

• Wave bands
• Short Wave (SW) and Long Wave (LW) only.

• Power type and voltage
• AC/DC-set / 110-125 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Material
• Wooden case

• from Radiomuseum.org

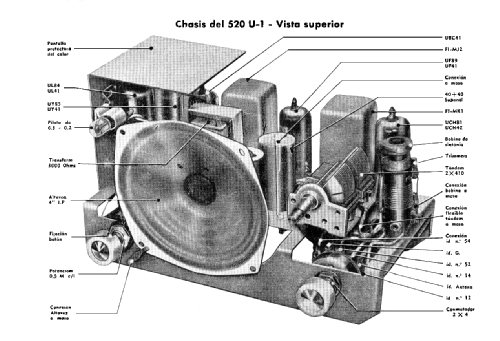

• Model: Super 520 U-1 Valgifson - Radio Watt Valgifson;

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 225 x 139 x 120 mm / 8.9 x 5.5 x 4.7 inch

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
