Super 722-Bt Valgifson

Radio Watt (Valgifson); Barcelona

  • Year
  • 1963 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 273619

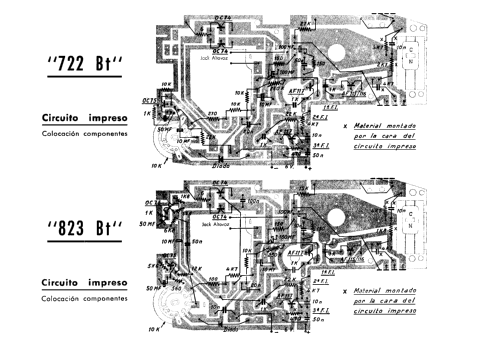

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 6
  • Main principle
  • Superheterodyne (common); 2 AF stage(s)
  • Wave bands
  • Broadcast and Short Wave (SW).
  • Power type and voltage
  • Dry Batteries / 4 x 1,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Super 722-Bt Valgifson - Radio Watt Valgifson;
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 155 x 87 x 40 mm / 6.1 x 3.4 x 1.6 inch
  • Notes
  • Precios: Receptor: 1.600 pts + 180 pts I.L. = 1.780 pts

    Estuche: 85,60 pts + 7,65 pts I.L. = 93,25 pts; Antena: 87,50 pts; Auricular: 37 pts.

    Total: 1997,75 pts (1 € = 166,86 pts)

  • Price in first year of sale
  • 1,997.75 ESP
  • Literature/Schematics (1)

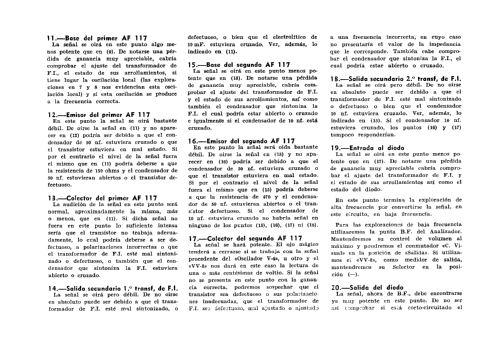

  • -- Original-techn. papers.
  • Author
  • Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
