Super 823-Bt Valgifson
Radio Watt (Valgifson); Barcelona
- Country
- Spain
- Manufacturer / Brand
- Radio Watt (Valgifson); Barcelona
- Year
- 1963 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 273620
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 7
- Main principle
- Superheterodyne (common); 2 AF stage(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Dry Batteries / 4 x 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Super 823-Bt Valgifson - Radio Watt Valgifson;
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 155 x 87 x 40 mm / 6.1 x 3.4 x 1.6 inch
- Notes
-
Precios: Receptor: 1.775 pts + 199,75 pts I.L. = 1.974,75 pts
Estuche: 85,60 pts + 7,65 pts I.L. = 93,25 pts; Antena: 87,50 pts; Auricular: 37 pts.
Total: 2.192,50 pts (1 € = 166,86 pts)
- Price in first year of sale
- 2,192.50 ESP

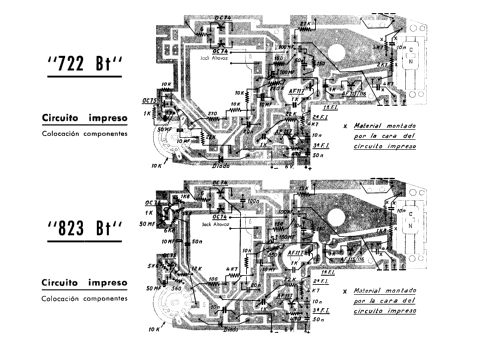

- Literature/Schematics (1)

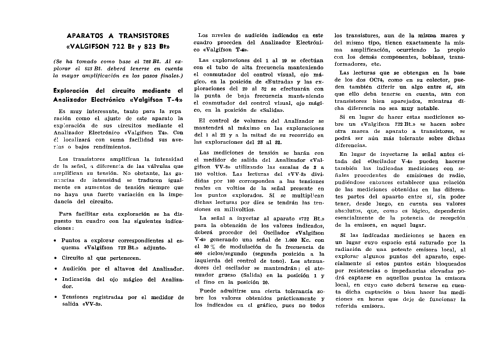

- -- Original-techn. papers.
- Author
- Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
