Dürer 94 1171.134 - 30001
Rafena Werke Radeberg, VEB; Radeberg (Ostd.)
- Country
- Germany
- Manufacturer / Brand
- Rafena Werke Radeberg, VEB; Radeberg (Ostd.)
- Year
- 1965–1967
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 95584
-
- Brand: VEB Rafena; Radeberg (Ostd.)
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 15
- Main principle
- Superheterodyne (common)
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Dürer 94 1171.134 - 30001 - Rafena Werke Radeberg, VEB;
- Shape
- Tablemodel, low profile (big size).
- Notes
- 47-cm-TV mit "gerader Bildscheibe", VHF-Band I+III Tuner nur mit PC88 ohne Regelung mit 2 Antenneneingängen; UHF vorbereitet. Kein Fernbedienungsanschluss, kein Anschluss für 2. Lautsprecher. Röhren teilweise mehrfach vorhanden.
- Source of data
- -- Original-techn. papers.

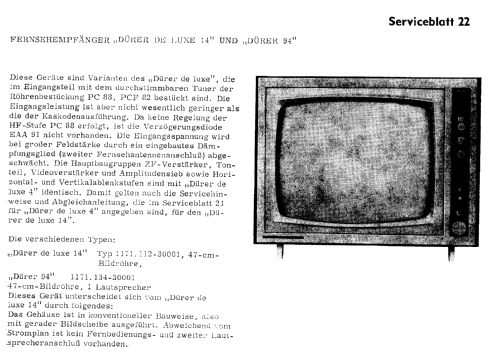

| Serviceanleitung Teil 1 | 3799 KB | |
| Serviceanleitung Teil 2 | 4157 KB | |
| Serviceanleitung Teil 3 | 4537 KB |
