Patriot FE847A

• Country
• Germany

• Manufacturer / Brand
• Rafena Werke Radeberg, VEB; Radeberg (Ostd.)

• Year
• 1960

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 88698

• • Brand: VEB Rafena; Radeberg (Ostd.)

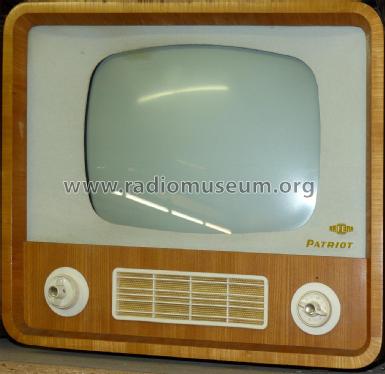

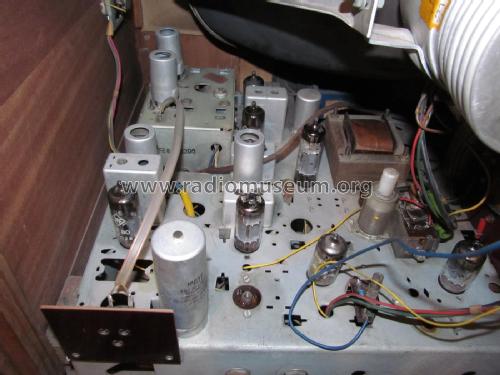

• Picture

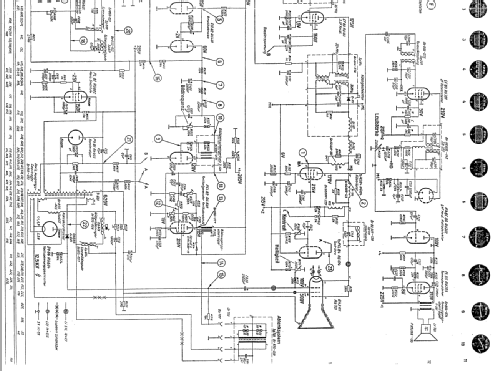

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 16

• Valves / Tubes
• PCC84 PCF82 EF80 EF80 EF80 EF80 PABC80 PL95 PCL84 ECC82 ECC82 PL81 PY81 DY86 PCL82 B43M1

• Main principle
• Superhet with RF-stage; ZF/IF 38900/33400/5500 kHz

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 1 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Patriot FE847A - Rafena Werke Radeberg, VEB;

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 544 x 482 x 575 mm / 21.4 x 19 x 22.6 inch

• Notes

• Empfangsbereich: 10 Fernsehkanäle (59.25 - 210.25 MHz) + 2 Reservekanäle (217.25 MHz Schwerin und 145.25 MHz Dresden).

  CCIR 625 Zeilen, Bildgrösse 365 x 270 mm. 1 Selengleichrichter, 2 Germaniumdioden. Getastete Reglung, Störspitzenbegrenzer vor Amplitudensieb, Bildröhre magnetisch fokussiert mit Ionenfalle.

• Net weight (2.2 lb = 1 kg)
• 28 kg / 61 lb 10.8 oz (61.674 lb)

• Price in first year of sale
• 1,580.00 DM

• Mentioned in
• -- Original prospect or advert

• Author
• Model page created by Mario Spitzer. See "Data change" for further contributors.
