Rajmar Super AF170
Raytron, Rajmar; Milano
- Country
- Italy
- Manufacturer / Brand
- Raytron, Rajmar; Milano
- Year
- 1962 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 188099
- Number of Transistors
- 8
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries / 4,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 cm = 2.4 inch
- Power out
- 0.4 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org

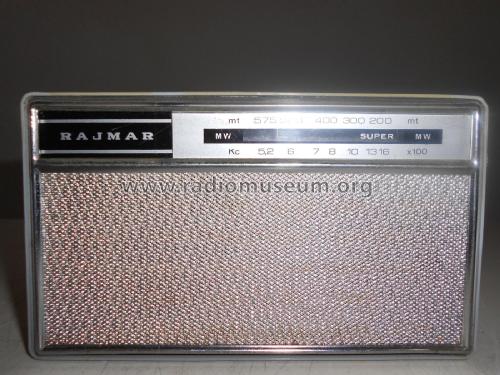

- Model: Rajmar Super [AF170] - Raytron, Rajmar; Milano
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 140 x 90 x 40 mm / 5.5 x 3.5 x 1.6 inch
- Notes
-
See also
- the same model Rajmar Super with first transistor SFT320 with quite some other data like N = 150 mW instead of 85 mW and 3 wires instead of 4.
- another Rajmar Super with a slightly different case
- Net weight (2.2 lb = 1 kg)
- 0.350 kg / 0 lb 12.3 oz (0.771 lb)
- Mentioned in
- Antique Radio Magazine - Italy, Club Antique Radio Magazine (n.110, novembre-dicembre 2012, pag. 6)
- Author
- Model page created by Alessandro Arrigoni. See "Data change" for further contributors.
