• Country
• United States of America (USA)

• Manufacturer / Brand
• Raleigh (Kaysons International, Ltd.); Los Angeles, CA

• Year
• 1964 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 237641

• Number of Transistors
• 10

• Semiconductors
• 2SA330 2SA331 2SA331 2SA425 2SA425 2SA425 2SB111 2SB111 2SB111 2SB111

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 3 AF stage(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 1 x 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 cm = 2 inch

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: 10 Transistor HT-1270 - Raleigh Kaysons International,

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 66 x 106 x 32 mm / 2.6 x 4.2 x 1.3 inch

• Notes

• Raleigh AM Pocket 10 Transistor Radio.

  See also Belcor HT-1270.

  Made in Japan



• Net weight (2.2 lb = 1 kg)
• 0.177 kg / 0 lb 6.2 oz (0.39 lb)

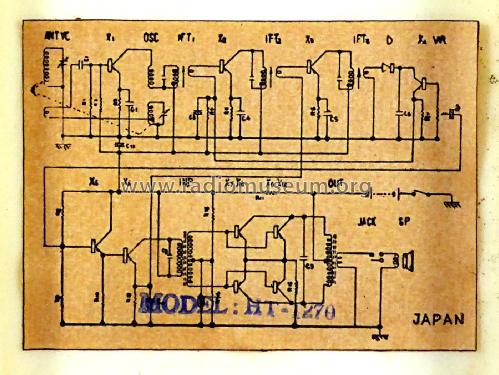

• Literature/Schematics (1)
• -- Original prospect or advert (Schenectady Gazette - Nov 21, 1964)

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.

• Other Models

• Here you find 75 models, 73 with images and 2 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Raleigh (Kaysons International, Ltd.); Los Angeles, CA
