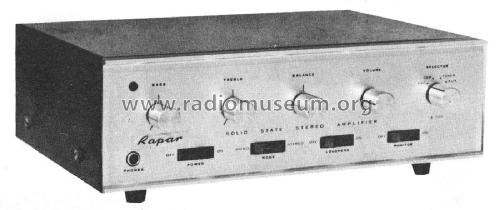

Rapar Solid State Stereo Amplifier A505

Rapar, Radio Parts Pty. Ltd.; Melbourne

Data
Forum
Pictures
Collections

  • Year
  • 1970 ??
  • Category
  • Audio Amplifier or -mixer
  • Radiomuseum.org ID
  • 314523

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Wave bands
  • - without
  • Power type and voltage
  • Alternating Current supply (AC) / 240 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Rapar Solid State Stereo Amplifier A505 - Rapar, Radio Parts Pty. Ltd.;
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 13.75 x 4.25 x 9.75 inch / 349 x 108 x 248 mm
  • Notes

  • "RAPAR" Model A505 Solid State Stereo Amplifier

    Frequency Response: 15 - 30,000 Hz ± 1dB  Distortion - WITHIN 0.1% (1V/1KHz).

    SPECIFICATION

    Music Power Output: 50W 1HF at 8Ω
    Sine Wave Power Output: (Per Channel) 18W at 8Ω
    Harmonic Distortion: Less than 1% at rated output
    Hum Noise: Better than 60dB
    Crosstalk: Better than 40dB
    Tone Control:
    • Bass 50 Hz + 11dB - 12dB (± 2dB)
    • Treble 10 KHz + 11dB - 13dB (± 2dB)
    Input Sensitivity: (at rated power)
    • Phono Magnetic 2.5mV
    • Ceramic Phono 80mV
    • Tuner 250mV
    • Auxiliary 250mV
    Control Knobs: Bass, Treble, Volume, Balance, Selector.
    Switches: Monitor, Power, Loudness, Mode.

    HEADPHONE SOCKET IN FRONT PANEL.

    IN & OUT TAPE RECORDER SOCKET ON REAR PANEL.

  • Net weight (2.2 lb = 1 kg)
  • 12 lb 0 oz (12 lb) / 5.448 kg
  • Mentioned in
  • -- Original prospect or advert (Radio Parts Catalogue.)
  • Author
  • Model page created by Martin Kent. See "Data change" for further contributors.
