• Country
• Great Britain (UK)

• Manufacturer / Brand
• Raymond Electric, London

• Year
• 1948 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 127407

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• CCH35 EF39 EBC33 CL33 CY31

• Main principle
• Superheterodyne (common); ZF/IF 465 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Power type and voltage
• AC/DC-set / 200-250 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Bakelite or Plastics (type unknown)

• from Radiomuseum.org

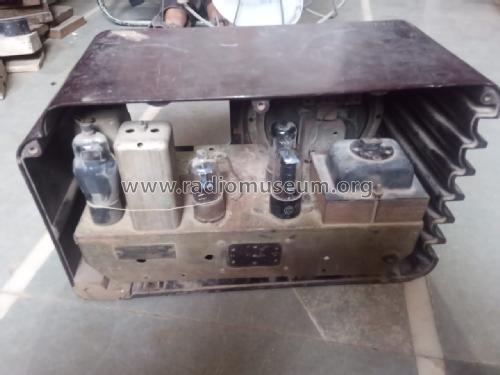

• Model: F19 - Raymond Electric, London

• Literature/Schematics (1)
• -- Schematic (Paul Stennings CD Vol 2)

• Author
• Model page created by Keith Staines. See "Data change" for further contributors.
