- Country
- Italy
- Manufacturer / Brand
- Raymond (marca / brand) - see also Magnadyne; Torino
- Year
- 1958/1959
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 161936
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common); ZF/IF 471/10700 kHz
- Wave bands
- Broadcast, 2 Short Wave plus FM or UHF.
- Details
- Record Player (not changer)
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 140; 160; 175; 230 Volt
- Loudspeaker
- 3 Loudspeakers
- Power out
- 6 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org

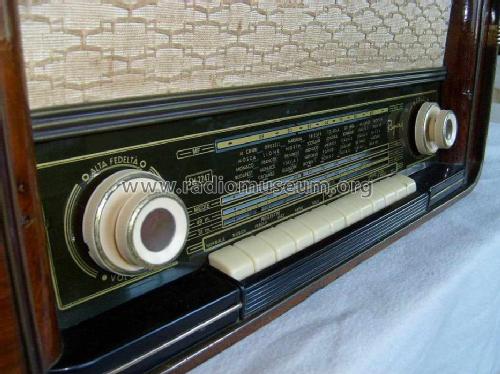

- Model: FM2247 - Raymond marca / brand - see
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 540 x 360 x 360 mm / 21.3 x 14.2 x 14.2 inch
- Notes
- Apparecchio a modulazione d'ampiezza e di frequenza
Una gamma onde medie e due bande allargate ad onde corte,a 49 metri ed a 31 metri
Banda onde ultracorte FM
Il mod. 2247 è provvisto di complesso fono a 4 velocità
La riproduzione sonora è del tipo ad alta fedeltà, con tre altoparlanti
- Source of data
- Guida Pratica Antique Radio III (2000)
- Literature/Schematics (1)
- IL Radio Libro D.E.Ravalico 17 Edizione 1960
- Author
- Model page created by Eduard Abfalterer. See "Data change" for further contributors.
