• Country
• United States of America (USA)

• Manufacturer / Brand
• Raytheon Mfg. Co.; Cambridge, MA

• Year
• 1950 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 133889

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 18

• Valves / Tubes
• 6BH6 6J6 6AG5 6AG5 6AG5 6AL5 12AU6 12AU6 19T8 25L6GT 12AU6 12SN7GT 12SN7GT 12SN7GT 50L6GT 50L6GT 1B3GT 7JP4

• Main principle
• Superheterodyne (common)

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• AC/DC-set / 105-125 Volt

• Loudspeaker
• Permanent or electro-dynamic (moving coil), system not known yet.

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: 7DX22-P - Raytheon Mfg. Co.; Cambridge,

• Shape
• Tablemodel, with any shape - general.

• Notes

• Raytheon 7DX22-P;

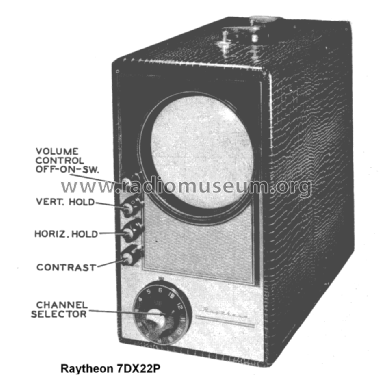

  7" round CRT porthole design b/w TV with US standard VHF tuner. Leatherette-covered case.

  Televison Receiver
  Channels 2 thru 13

• Source of data
• -- Collector info (Sammler)

• Mentioned in
• Photofact Folder, Howard W. SAMS (81-13 Set 81 Folder 13)

• Author
• Model page created by a member from A. See "Data change" for further contributors.

• Other Models

• Here you find 324 models, 152 with images and 240 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Raytheon Mfg. Co.; Cambridge, MA
