• Country
• United States of America (USA)

• Manufacturer / Brand
• Raytheon Mfg. Co.; Cambridge, MA

• Year
• 1956

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 263356

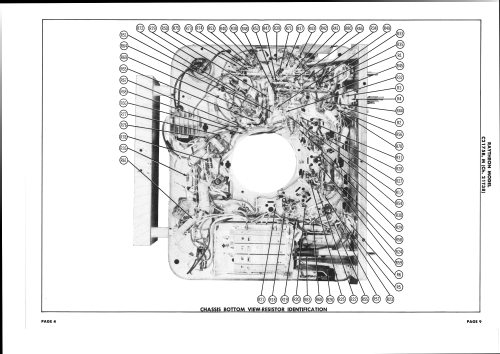

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 15

• Valves / Tubes
• 6BC5 6J6 6CB6 6CB6 6AN8 6AN8 6AN8 6BN6 25BK5 12BH7A 12AU7 25BQ6GT 25AX4GT 1X2B 21YP4A

• Main principle
• Superhet with RF-stage; ZF/IF 26750/22250 kHz

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 60 cycles, 115V = 105 -115 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: C2175M Ch= 21T38 - Raytheon Mfg. Co.; Cambridge,

• Shape
• Console, Lowboy (legs < 50 %).

• Notes

• b/w TV with US FCC standard VHF tuner.
  The Raytheon model C2175M is a 21" b/w TV with US standard VHF Tuner channels 2 thru 13. Equipped with chassis 21T38, VHF tuner 9211-25293-1  and picture tube 21YP4A. Has 2 Selenium Rectifiers .

• Mentioned in
• Photofact Folder, Howard W. SAMS (Set 313 Folder 10 dated 4-1956)

• Author
• Model page created by a member from A. See "Data change" for further contributors.
