C-1729A
Raytheon Mfg. Co.; Cambridge, MA
- Country
- United States of America (USA)
- Manufacturer / Brand
- Raytheon Mfg. Co.; Cambridge, MA
- Year
- 1952 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 355988
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 21
- Valves / Tubes
- 6AG5 12AT7 6AU6 6AU6 6AU6 6AU6 6AL5 6SN7 6SN7 6AU6 6AU6 6AL5 6AU6 6V6GT 6SN7 6AL5 6SN7 6BG6 6W4 1X2 5U4
- Main principle
- Superhet with RF-stage
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 60Hz, 117V=110-120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- from Radiomuseum.org
- Model: C-1729A - Raytheon Mfg. Co.; Cambridge,
- Notes
-
Raytheon model C-1729A is a b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with a VHF tuner and picture not specified.
- Literature/Schematics (1)

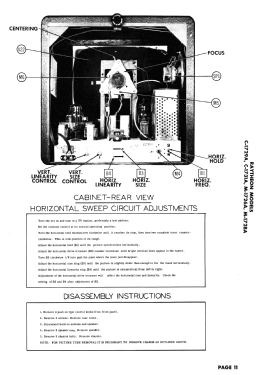

- Photofact Folder, Howard W. SAMS (Set 171, folder1, dated 1952)
- Author
- Model page created by Dirk Taekels. See "Data change" for further contributors.
