• Country
• United States of America (USA)

• Manufacturer / Brand
• Raytheon Mfg. Co.; Cambridge, MA

• Year
• 1952 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 360268

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 18

• Valves / Tubes
• 6BK7 12AT7 6CB6 6CB6 6CB6 6AH6 6AU6 6AL5 6AV6 25L6GT 6BE6 12SN7GT 6AL5 6SN7GT 25BQ6GT 6AX4GT 1X2A 17HP4

• Main principle
• Superhet with RF-stage

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 60Hz, 115V=110-120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: C-1736A Ch= 17T1 - Raytheon Mfg. Co.; Cambridge,

• Shape
• Tablemodel, with any shape - general.

• Notes

• Raytheon model C-1736A is a 17” b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with chassis 17T1, VHF tuner 201-21192 and picture tube 17HP4.



• Literature/Schematics (1)

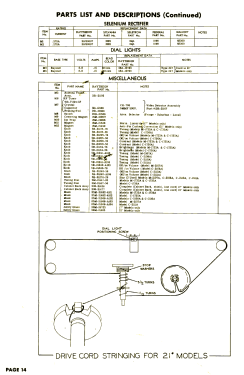

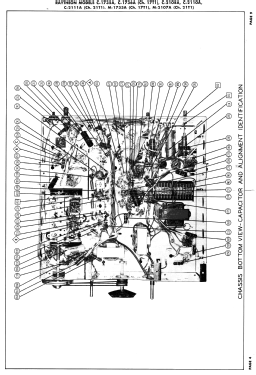

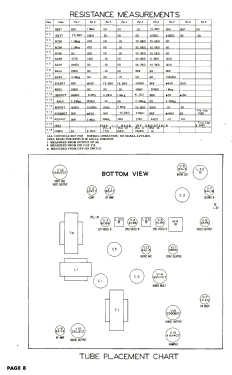

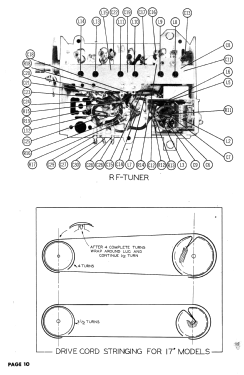

• Photofact Folder, Howard W. SAMS (Set 189, folder 14, dated 12-52)

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.

• Other Models

• Here you find 331 models, 153 with images and 247 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Raytheon Mfg. Co.; Cambridge, MA
