M-1726A

• Country
• United States of America (USA)

• Manufacturer / Brand
• Raytheon Mfg. Co.; Cambridge, MA

• Year
• 1952 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 355990

• Picture
• Schematics

Previous Next

Previous Next

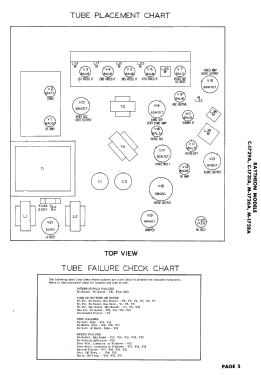

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 22

• Valves / Tubes
• 6AG5 12AT7 6AU6 6AU6 6AU6 6AU6 6AL5 6SN7GT 6AU6 6AU6 6AL5 6AU6 6V6GT 6SN7GT 6SN7GT 6AL5 6SN7GT 6BG6G 6W4GT 1X2A or 1X2 5U4G 17BP4A

• Main principle
• Superhet with RF-stage

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 60Hz, 117V=110-120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: M-1726A - Raytheon Mfg. Co.; Cambridge,

• Shape
• Tablemodel, with any shape - general.

• Notes

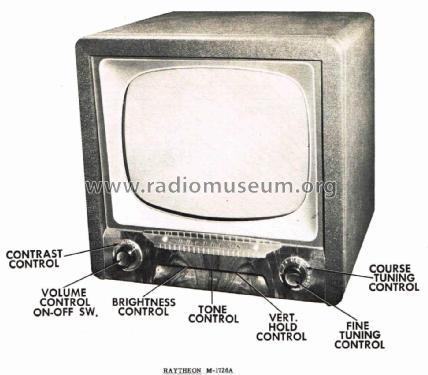

• Raytheon model M-1726A is a b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with a VHF tuner and picture 17BP4A.

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 171, folder1, dated 1952)

• Literature/Schematics (2)
• Photofact Folder, Howard W. SAMS (Set 176, folder 10, dated 8-52)

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.
