M-210-M Ch= 21T40
Raytheon Mfg. Co.; Cambridge, MA
- Country
- United States of America (USA)
- Manufacturer / Brand
- Raytheon Mfg. Co.; Cambridge, MA
- Year
- 1956 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 265804

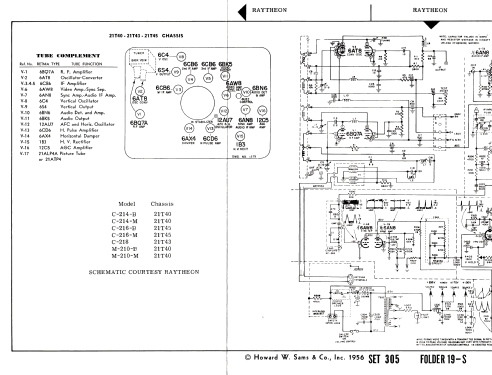

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 17
- Valves / Tubes
- 6BQ7A 6AT8 6CB6 6CB6 6CB6 6AW8 12C5 6AN8 6BN6 6BK5 6C4 6S4 12AU7 6CD6 6AX4GT 1B3GT 21ALP4A
- Main principle
- Superhet with RF-stage
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: M-210-M Ch= 21T40 - Raytheon Mfg. Co.; Cambridge,
- Shape
- Tablemodel, with any shape - general.
- Notes
-
Raytheon model M-210-M is a 21" b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with chassis 21T40, VHF tuner 211-25453 and picture tube 21ALP4A.
