M-21CO-B Ch= 21CT1C
Raytheon Mfg. Co.; Cambridge, MA
- Country
- United States of America (USA)
- Manufacturer / Brand
- Raytheon Mfg. Co.; Cambridge, MA
- Year
- 1957 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 316994
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 27
- Valves / Tubes
- 6BZ7 6U8 6DC6 6DC6 6DC6 6CB6 6CL6 6AN8 6U8 6U8 6T8 6AQ5 6U8 12AU7 6BL7GT 6AL5 6SN7GT 6CB5 6AU4GTA 3B2 6BK4 1X2B 6AG7 6BJ7 6U8 12BH7A 21AXP22A
- Main principle
- Superhet with RF-stage
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: M-21CO-B Ch= 21CT1C - Raytheon Mfg. Co.; Cambridge,
- Shape
- Tablemodel, with any shape - general.
- Notes
-
Raytheon model M-21CO-B is a 21" color TV with US standard VHF tuner channels 2 thru 13. Equipped with chassis 21CT1C, VHF tuner 211-25983 and picture tube 21AXP22.
- Literature/Schematics (1)

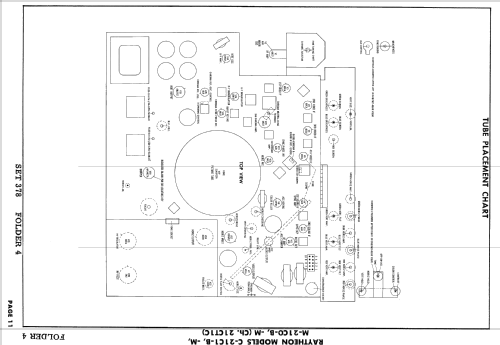

- Photofact Folder, Howard W. SAMS (Set 378 Folder 4 dated 11-57)
