RC-1720A Ch= 17AY27

• Country
• United States of America (USA)

• Manufacturer / Brand
• Raytheon Mfg. Co.; Cambridge, MA

• Year
• 1950 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 144464

• Picture

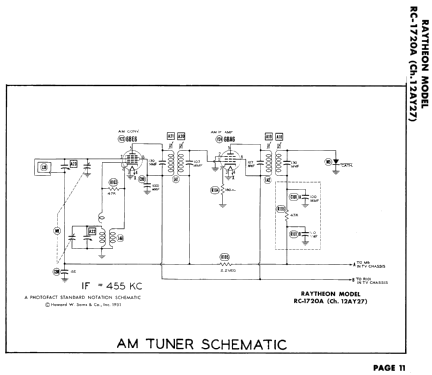

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 24

• Valves / Tubes
• 6AG5 12AT7 6AU6 6AU6 6AU6 6AU6 6AL5 12AT7 6AU6 6AU6 6AL5 6AU6 6V6GT 6SN7GT 6SN7GT 6AL5 6SN7GT 6BG6G 6W4GT 1X2A or 1X2 5U4G 6BE6 6BA6 17BP4A

• Main principle
• Superhet with RF-stage

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: RC-1720A Ch= 17AY27 - Raytheon Mfg. Co.; Cambridge,

• Shape
• Console with any shape - in general

• Notes

• Raytheon model RC-1720A is a 17” b/w TV with US standard VHF tuner channels 2 thru 13.
  Equipped with chassis 12AY27, a TV-AM-phono combination receiver, a VHF tuner and picture tube 1BP4A.
