• Country
• United States of America (USA)

• Manufacturer / Brand
• Raytheon Mfg. Co.; Cambridge, MA

• Year
• 1956

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 82028

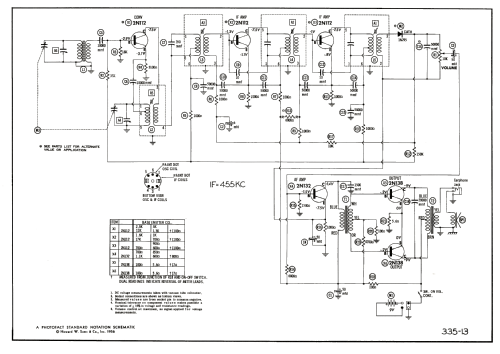

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors
• 2N112 or. CK760 2N112 or. CK760 2N112 or. CK760 2N132 2N138 2N138

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.75 inch = 7 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: T-150-1 Ch=6RT1 - Raytheon Mfg. Co.; Cambridge,

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Notes
• Raytheon Transistorized Deluxe;
  Type & color code: Grille - Case,
  T-150-1 = Black-Yellow,
  T-150-2 = Ivory-Yellow,
  T-150-3 = Black-Red,
  T-150-4 = Ivory-Red,
  T-150-5 = Ivory-Gray.


• Circuit diagram reference
• Beitman Radio Diagrams Vol. 16, 1956

• Literature/Schematics (1)

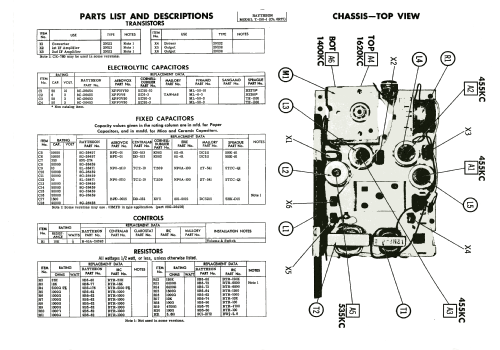

• Photofact Folder, Howard W. SAMS (Set 335 Folder 13 dated 10-56)

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.
