Television Receiver M-701

• Country
• United States of America (USA)

• Manufacturer / Brand
• Raytheon Mfg. Co.; Cambridge, MA

• Year
• 1950

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 136761

• Picture

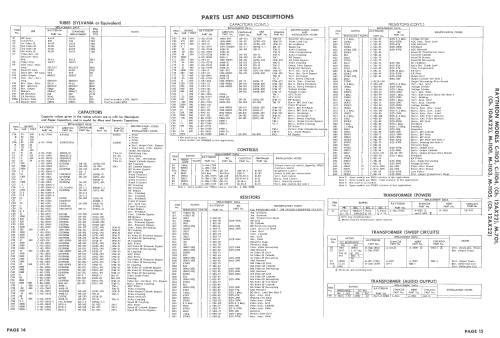

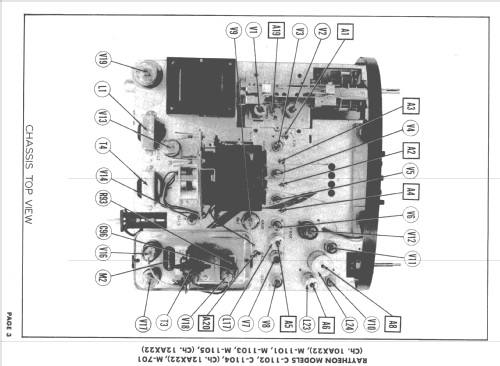

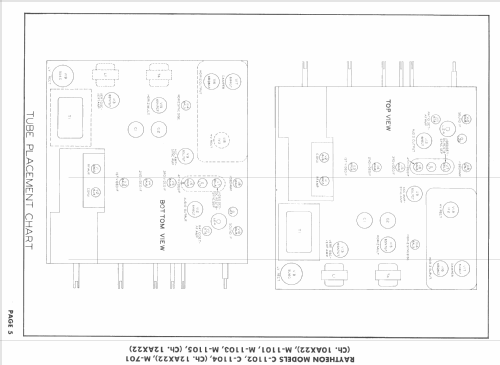

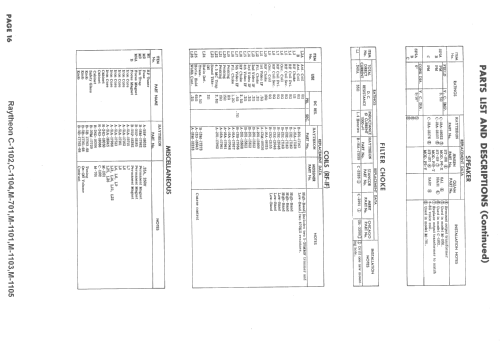

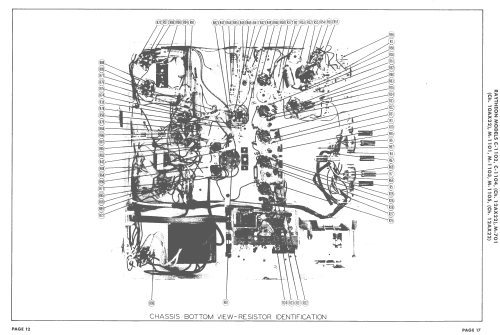

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 115 Volt

• Loudspeaker
• Permanent or electro-dynamic (moving coil), system not known yet.

• Material
• Wooden case

• from Radiomuseum.org
• Model: Television Receiver M-701 - Raytheon Mfg. Co.; Cambridge,

• Shape
• Tablemodel, with any shape - general.

• Notes
• Raytheon M-701, Television Receiver;
  ~12" round CRT porthole style b/w TV with US standard VHF tuner, 235 W power consumption.

• Source of data
• -- Collector info (Sammler)

• Author
• Model page created by a member from A. See "Data change" for further contributors.
