UM-2186 Ch= 21T32
Raytheon Mfg. Co.; Cambridge, MA
- Country
- United States of America (USA)
- Manufacturer / Brand
- Raytheon Mfg. Co.; Cambridge, MA
- Year
- 1956 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 275328

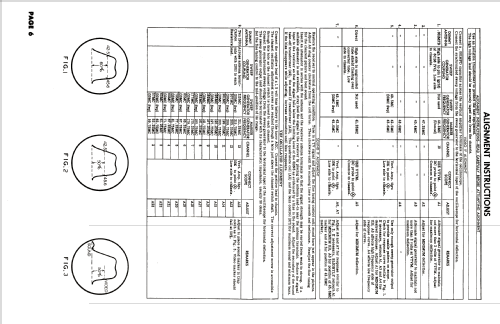

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 17
- Valves / Tubes
- 6AF4A 6BQ7A 6AT8 6CB6 6CB6 6CB6 6AN8 6AN8 6BN6 25BK5 6C4 6S4A 12AU7 25BQ6 or 25CU6 25AX4GT 1B3GT 21AVP4A
- Main principle
- Superhet with RF-stage
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 60 cycles, 110-120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
- Material
- Metal case
- from Radiomuseum.org
- Model: UM-2186 Ch= 21T32 - Raytheon Mfg. Co.; Cambridge,
- Shape
- Tablemodel, with any shape - general.
- Notes
-
The RAYTHEON model UM-2186 is a 21" b/w TV with US standard VHF Tuner channels 2 thru 13, 14 thru 83 UHF.Equipped with UHF-VHF-tuner 211-25394, chassis 21T32 and picture tube 21AVP4A. 2x selenium rectifier.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 331 Folder 12 dated 9-56)
- Author
- Model page created by Dirk Taekels. See "Data change" for further contributors.
